Brand: Advanced Clutch Technology
Manufacturer's Part Number: T1R-F05
Part Type: Clutch Kits
Product Line: ACT Heavy-Duty Twin Disc Race Clutch Kits
Automotive Fittings Part Number: ACL-T1R-F05
UPC: 00842385016760
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 23
Input Shaft Diameter: 1.000 in.
Disc Diameter (in.): 10.500 in.
Disc Diameter (mm): 267mm
Disc Material: Ceramic
Disc Style: Full face
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Billet steel
Counterweight Assist: No
Mounting Hardware Included: No
Quantity: Sold as a kit.
Description:
Carefully engineered, precisely assembled, and accurately balanced, the ACT heavy-duty twin disc race clutch kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary positive lift floater system design, which results in quiet operation with no floater rattle and no posts to wear. The twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms, and feature the ability to adjust for disc wear to provide equal disengagement for discs. The 6-pad race discs are made with high-quality, ceramic friction materials, and a chromoly hub heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifting, while delivering light pedal effort, aggressive engagement, mild to moderate gear rattle. Order the kit recommended for your specific vehicle and engine size.

Features and benefits:

* CNC-machined and dynamically balanced flywheel

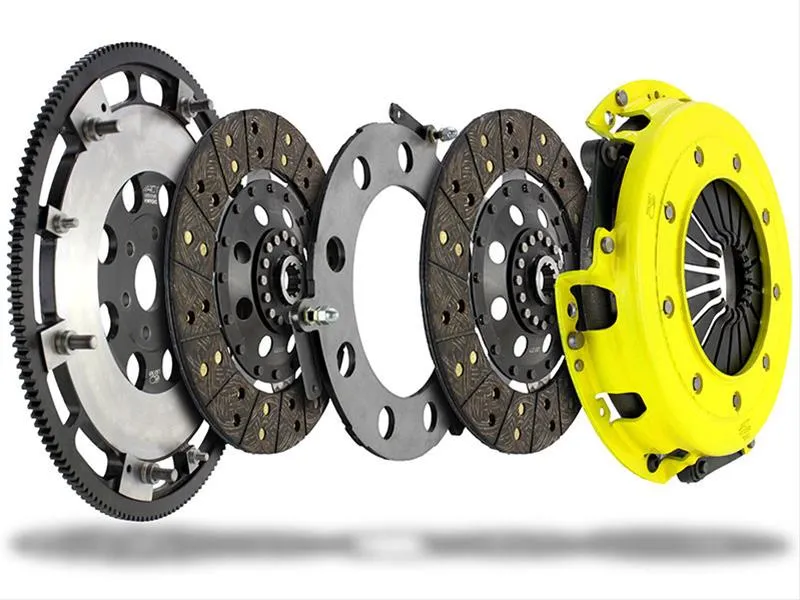

* Includes a pressure plate, two discs, a floater, and alignment tool
* Trouble-free installation and operation
* Recommended for race use only
