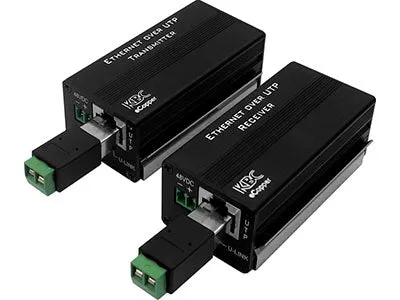

The IPW-1VC is an analog to IP converter set that will utilize 2-conductor copper wire to connect a network intercom station. The set includes an ethernet-to-UTP (untwisted pair) transmitter and receiver, along with two RJ45-to-2-wire converters and power supply. Use the IPW-1VC when existing cable is in place and pulling network cable is cost-prohibitive.

The IPW-1VC can be used to convert these stations from ethernet cable to UTP:
IX-BA
IX-DA
IX-DV
IX-DVF
IX-DVF-2RA
IX-DVF-2RA-FR
IX-DVF-4A
IX-DVF-P
IX-DVF-RA
IX-DVF-RA-FR
IX-MV
IX-MV7-B
IX-MV7-HB
IX-MV7-HW
IX-MV7-W
IX-NVP
IX-NVP2
IX-PA
IX-RS-B
IX-RS-W
IX-SDH
IX-SDH-P
IX-SS-2G
IX-SSA
IX-SSA-2RA
IX-SSA-2RA-FR
IX-SSA-RA
IX-SSA-RA-FR

FEATURES

• Replace legacy stations with IP video intercoms using existing cable
• Use existing 2-conductor wire up to 1,000’
• Supports PoE
• Small enough to fit behind most door or sub stations
• LED indicators show unit connectivity and status

SPECS
Power: 48V DC, 1A
Consumption: < 2 Watts
Mounting: Supplied mounting bracket
Wire distance: 1,000 feet on 22-18AWG shielded or unshielded 15 feet on Cat-5e/6

Calling capacity.
Video Station: 0-500 feet = 5 masters
                           501-1000 feet = 3 masters
Audio Station: 0-1000 feet = 7 masters

Operating Temp: -4° ~ 140°F (-20° ~ 60°C)
Dimensions: 1-7⁄16" H x 3" W x 1-⅛" D
