Product Details
＋
AV 5.1k amplifier
1650 W total power
2 x 75 W @ 4ohm 2 x 250 W @ 2ohm 1 x 1000 W @ 2ohm
AB-class
AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front rear subwoofer or multi-amplified front subwoofer systems.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.

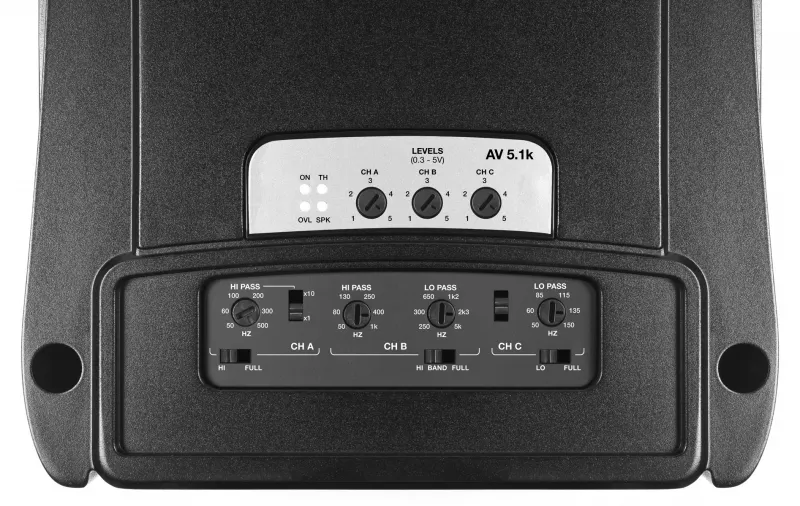

The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.
The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
FEATURES
- Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
- Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth
TECHNOLOGIES
Hi-Res audioAccording to the definition of HiRes audio provided by JAS (Japan Audio Society – jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
Power Output
| Load Imp. | 5 Channels |
| 4 Ohm | 75 W x 2 140 W x 2 600 W x 1 |
| 4/2 Ohm | 75 W x 2 140 W x 2 1000 W x 1 |
| 2/4 Ohm | 75 W x 2 250 W x 2 1000 W x 1 |
