Product Details
＋

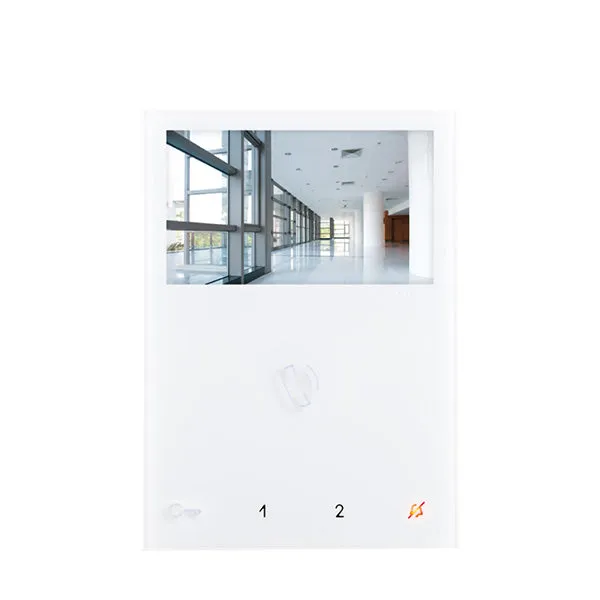

Door-entry phone with electronic call function, conversation button on base, call volume control and privacy function, door open button and supplementary button or additional services. On this model it is not possible to add extra buttons or LEDs. Dimensions: 95 x 215 x 58 mm.
More Information Below:
| GENERAL DATA | |
| Height (inch) (in) | 6.3 |
| Width (inch) (in) | 4.53 |
| Depth (inch) (in) | 0.87 |
| Product weight (oz) (oz) | 17.64 |
| Product color | White RAL9003 |
| Type of finishing materials | ABS |
| Wall-mounted | Yes |
| COMPATIBLE SYSTEMS | |
| Audio/video Simplebus 2 with power supply art. 4888CU | Yes |
| Audio/video Simplebus 2 with power supply art. 1210/1210A | Yes |
| Simplebus 2 audio/video kit with power supply art. 1209 | Yes |
| DISPLAY | |
| Display size (") | 4.3 |
| Aspect Ratio | 16:9 |
| Resolution (pixels) | 480x272 |
| AUDIO FEATURES | |
| Microphone | 6mm (Ø), Omnidirectional |
| Loudspeaker | 36mm (Ø), 40 Ohm, 1W |
| Technologies implemented | Full-Duplex |
| ELECTRICAL CHARACTERISTICS | |
| Type of power supply | Power supply from video door entry bus |
| Supply voltage | 22÷34 VDC (Bus) |
| Absorption in stand-by (W) | 0.05 |
| Maximum absorption (W) | 8.8 |
| HARDWARE FEATURES | |
| Type of buttons | Capacitive |
| Service buttons | Lock-release, Answer, Silent (Privacy) |
| No. of programmable buttons for additional functions |
2 (5 with accessory art. 6734W) |
| Clamps | L L CFP1 CFP2 |
| Removable terminals | Yes |
| Number of inputs (n°) | 1 |
| SETTINGS | |
| Loudspeaker volume | Yes |
| Microphone volume | Yes |
| Ringtone volume | Yes |
| Screen brightness control | Yes |
| Screen contrast | Yes |
| Screen colour | Yes |
| ENVIORNMENTAL | |
| IP protection rating | IP30 |
| Operating temperature (°F) | 41 ÷ 104 |
| Operating humidity (RH max) (%) | 25 ÷ 75 |
| Environmental class | I |
| CE certifications | RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6 3:2007 A1:2011) |
| GENERAL FEATURES | |
| Door opening on call (Doctor) | Yes |
| Door opener | Yes |
| Self Activation | Yes |
| CPS call | Yes |
| Intercom calls | Yes |
| Actuator control | Yes |
| Multiple address | Yes |
| Outside door call input | Yes |
| Sending alarm calls | Yes |
| Silent mode (Privacy) | Yes |
| Automatic answer (handsfree) | Yes |
| Door open signaling | Yes |
| Customisable ringtone | Yes |
