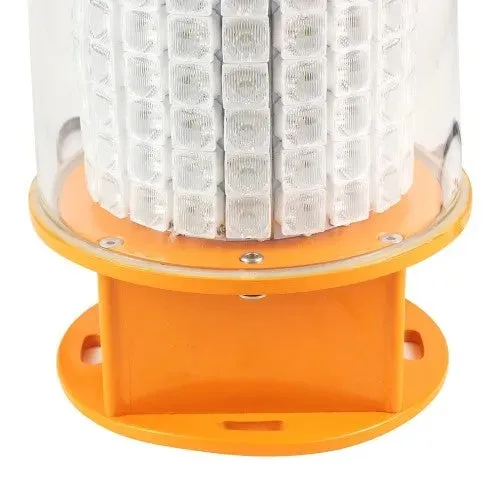

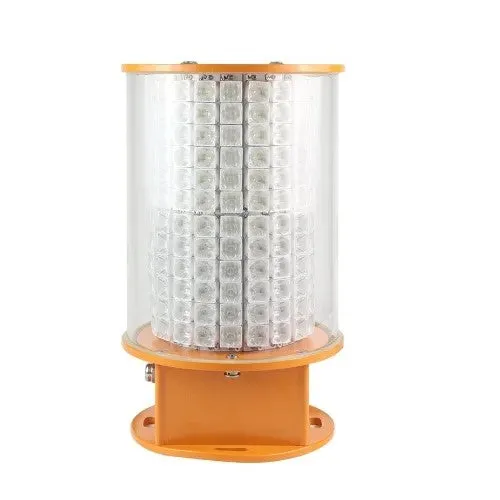

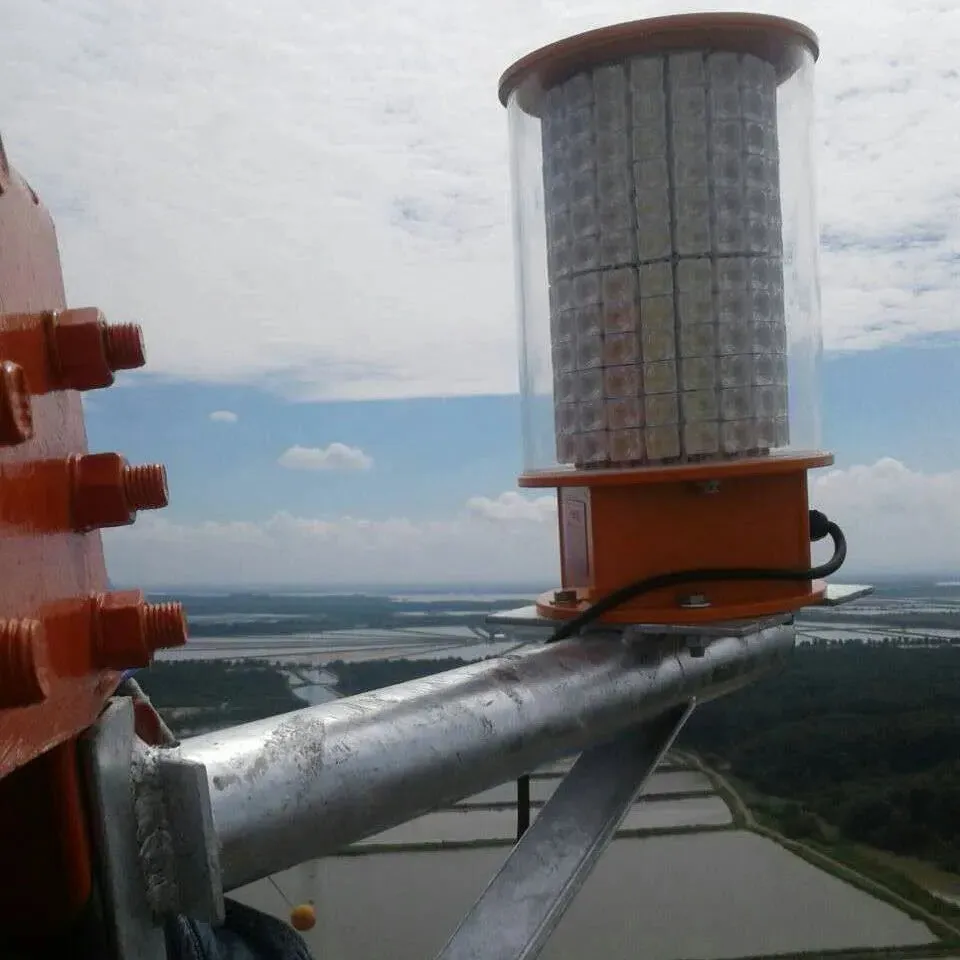

This JW-HI/O Omni-directional Aviation Obstruction Light is high intensity and type A & type B. It uses a reliable eco-lighting solution and designed specifically for aviation and obstruction purposes. Whether it's high-rise buildings, power towers, construction cranes, airports, highway express lanes, radio and television towers, microwave towers, tall chimneys, bridge pylons, exploration well sites, ship navigation, or aircraft runways, this light is perfect for marking potential obstacles.
With its explosion-proof design, this aviation obstruction light offers enhanced safety and durability. It can withstand harsh environmental conditions, ensuring long-lasting performance even in challenging weather conditions. Its robust construction guarantees resistance against impacts, vibrations, and extreme temperatures, making it suitable for a wide range of applications.
Easy installation and low maintenance further add to the appeal of this product. It comes with pre-drilled holes and mounting brackets for effortless installation on various surfaces. Additionally, its self-contained design eliminates the need for frequent bulb replacements or complex wiring arrangements, reducing operational costs and minimizing downtime.
Specification:
|
Model: |
JW-HI/O |
|
FAA Standard: |
L-856 |
|
Light intensity: |
2000~100000cd（±25%） |
|
Power Voltage: |
AC 110V/220V DC48V/24V/12V |
|
Power Supply Frequency: |
50Hz～60Hz |
|
Flash rate: |
40-60times/minute |
|
Continuous Working Time: |
70ms |
|
Service life of light source: |
≥10years |
|
Power consumption: |
150W |
|

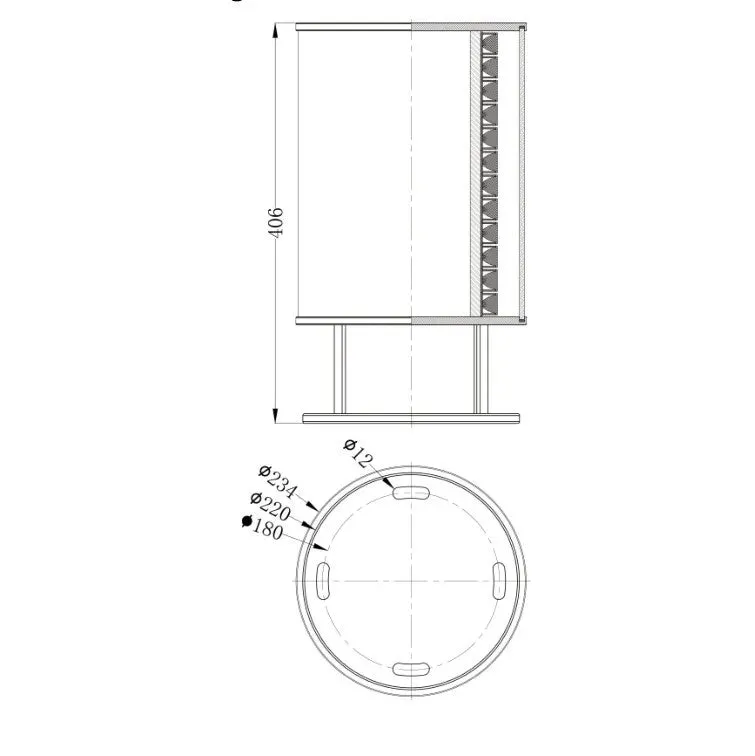

Overall size(mm): |
234mm×234mm×406mm |
|
Installation size(mm): |
180mm×180mm×M10 |
|
Vertical degree: |
7° |
|
Horizontal degree: |
360° |
|
Optically Controlled Ambient Brightness: |
50cd-500cd/m2 |
|
Weight: |
16Kg |
|
Emitting color: |
White |
|
Ambient temperature: |
-40℃～50℃ |
|
Wind load: |
80m/s |
|
Protection standard: |
IP68 |
|
LED quantity: |
240×10W |
|
500cd/m²: |
Type A 200000cd±25%，typeB 100,000cd±25% |
|
50~500cd/m²: |
20,000cd±25% |
|
＜50 cd/m²: |
2,000cd±25% |
Features
- Advanced optical projection lens design, emitting angle follow FAA standard.
- With function of automatic light-control function, it can change light intensity class on daytime, rainy day and at night.
- LED light source, its service life can above 100000 hours.
- Low voltage design, high safety for maintenance and utilization.
- Anti-shock,lightning protection, light fastness, anti-sleet,resist typhoons, the hail weather.
- Adopts constant current circuit design, the longer service life.
- Adopts changeable LED light source that can reduce the maintenance charge in the future.
- No radio frequency (rf), no electromagnetic interference.
- With lighting protection function
- Adopts transparent glass cover which has the characteristics of high transmittance and chemical resistance,under the bad environment there will be no discoloration and cracking phenomenon.
Usage/Application:
- Don't use any out of nominal voltage,or will destroy equipment.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
