Product Details
＋
LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; White; 120-277V; With Photocell

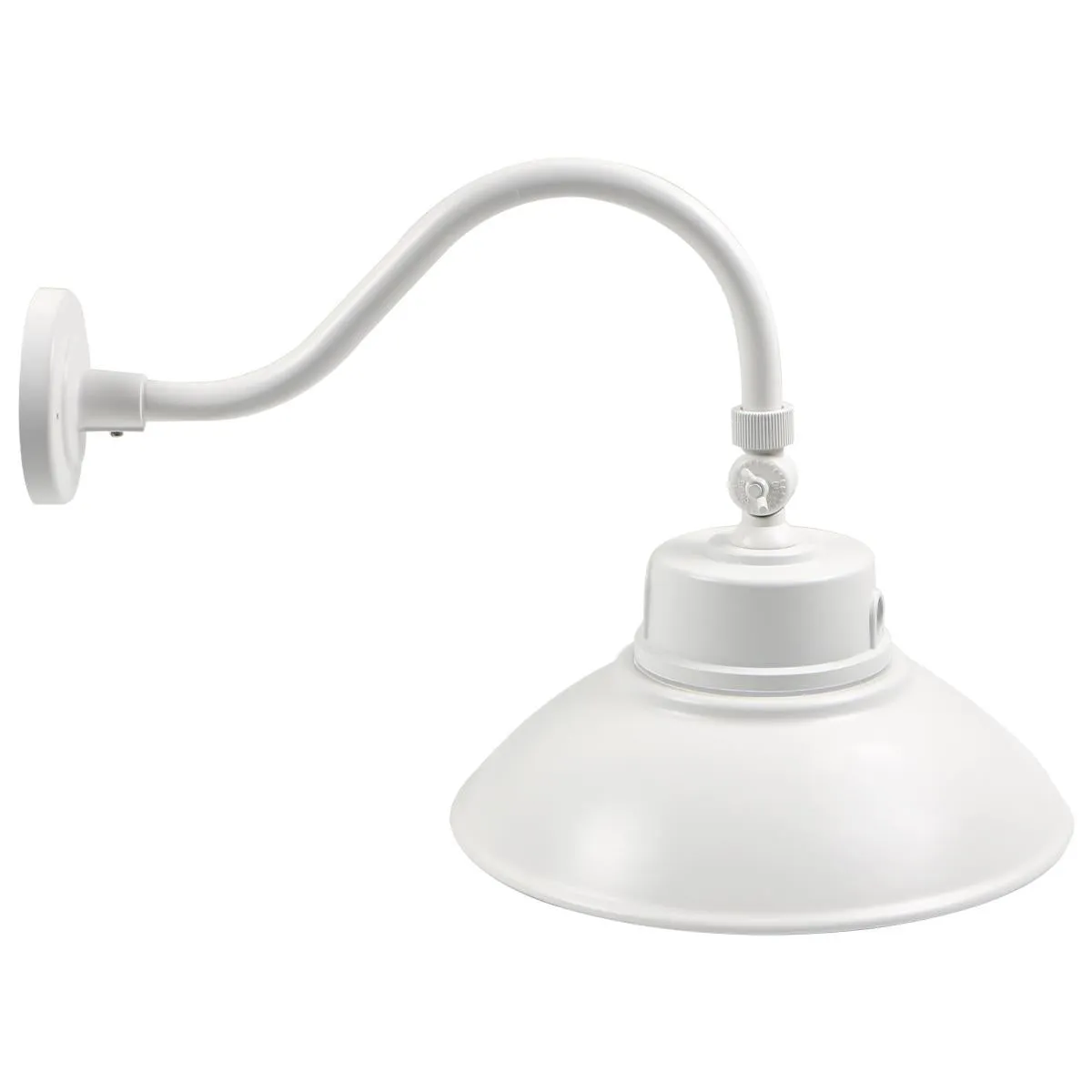

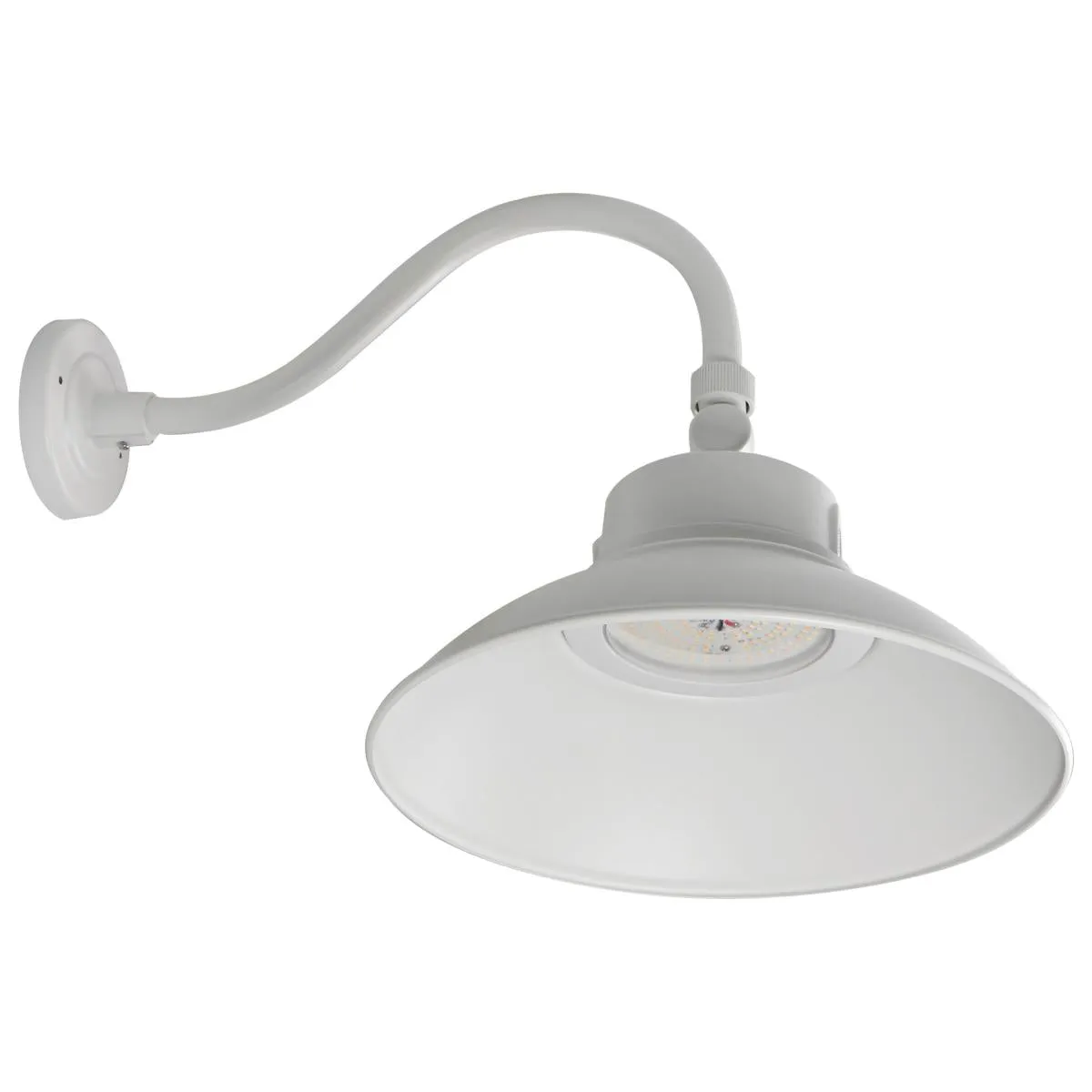

The classic gooseneck fixture is one we have all seen often, but never with the technologies now available from Nuvo Lighting. Popular for so many applications, it might seem hard to make it even more versatile, but with added CCT and Wattage selectable technologies, a wet location rating and clean, efficient LED light, this fixture can't be beat. It's easy to add style and efficiency to any venue with this classic design.

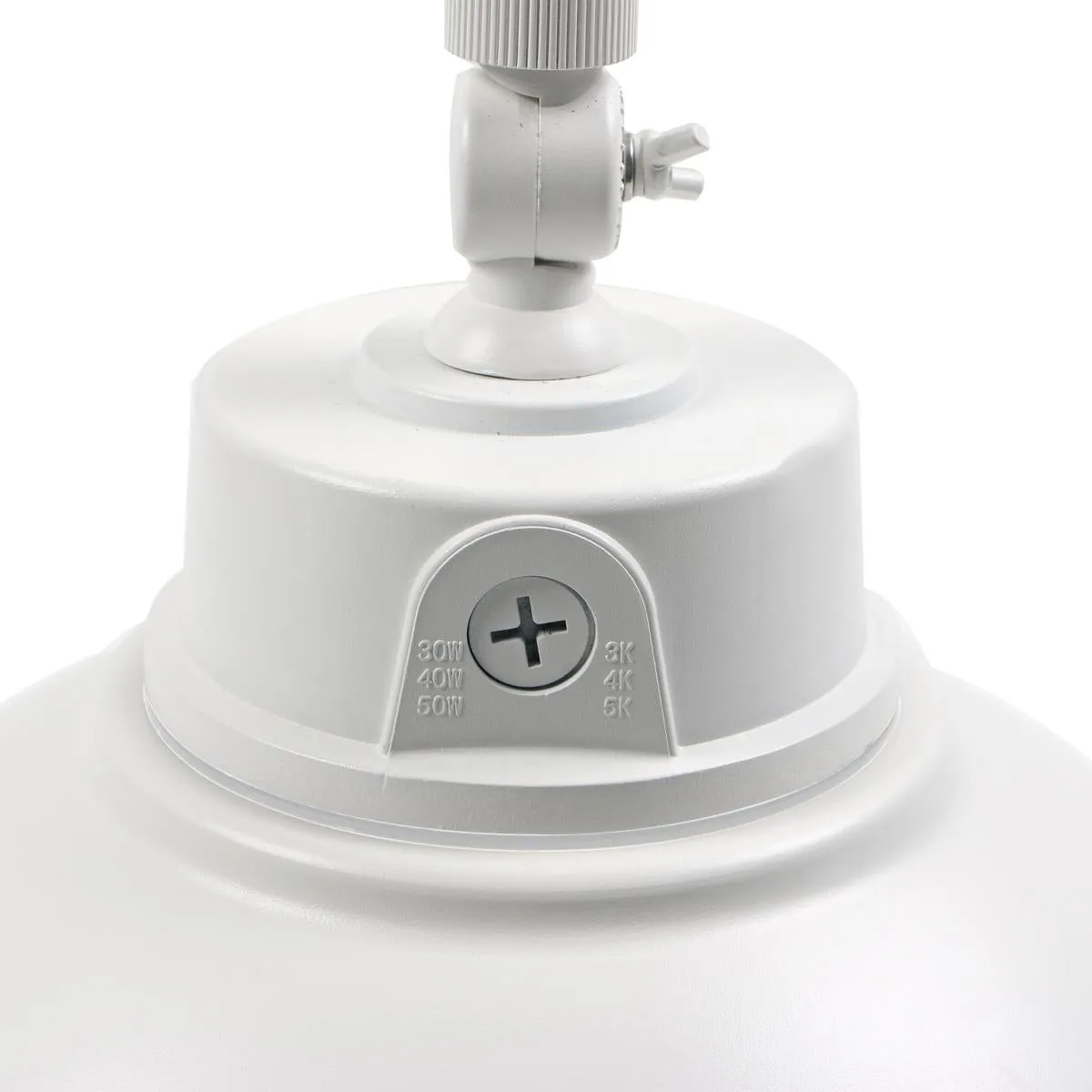

- Wattage and CCT Selectable

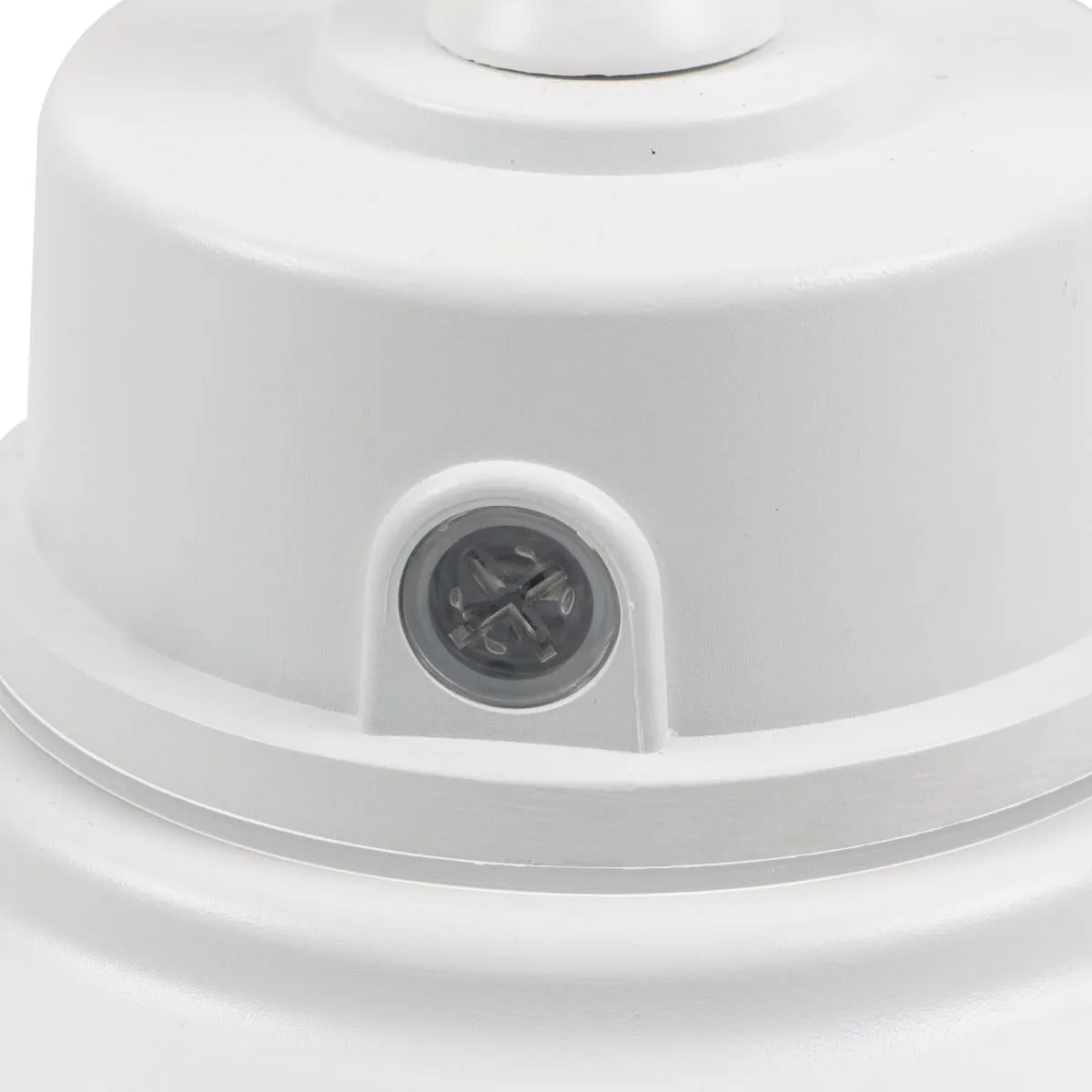

- Integrated By-Passable Photocell
- 0-10V Dimmable
- 2KV Built-in Surge Protection
- 5 Year Warranty
- Includes 16 in. Mounting Arm; 24 in. Accessory Mounting Arm Available
- IP65 Rated
General
| Status | Active |
| Finish | White |
| Wattage | 30W/40W/50W |
| Style | Traditional |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| Width (in.) | 14.17 |
| Height (in.) | 14.96 |
| Extension (in.) | 23.23 |
Smart Product Info
| IOT Enabled | No |
Specifications
| Technology | LED |
| Wattage | 30W/40W/50W |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Lumen Output | 3300L-5500L |
| Rated Hours | 50000 |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Photocell or Sensor | Has Photocell |
| Weight (lb.) | 4.40 |
| Fixture Material | Die Cast Aluminum |
| Fixture Type | Gooseneck |
| Operating Temperature | -30C (-22F) to 50C ( 122F) |
Dimensions
| Height (in.) | 14.96 |
| Width (in.) | 14.17 |
| Extension (in.) | 23.23 |
| Back Plate or Canopy Diameter (in.) | 4.65 |
Compliance
| Safety Listing | cULus - Listed; cULus - Certified; cETLus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-85IVYA |
| B.U.G. Rating | B2-U2-G0 |
| Dark Sky Compliant | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Compliant |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Compliant |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Additional Information | UV Powder Coated Finish |
| Specification Note | For International Dark Sky compliance, the fixture CCT must be set to 3000K and installed in a downward facing and locked position. |
| Includes | Includes 16" Mounting Arm |
| Warranty |
Packaging
| Each UPC | 045923656606 |
| Each Quantity | 1 |
| Each Length (in.) | 20.28 |
| Each Width (in.) | 16.14 |
| Each Height (in.) | 10.04 |
| Each Weight (lb.) | 5.10 |
