Product Details
＋

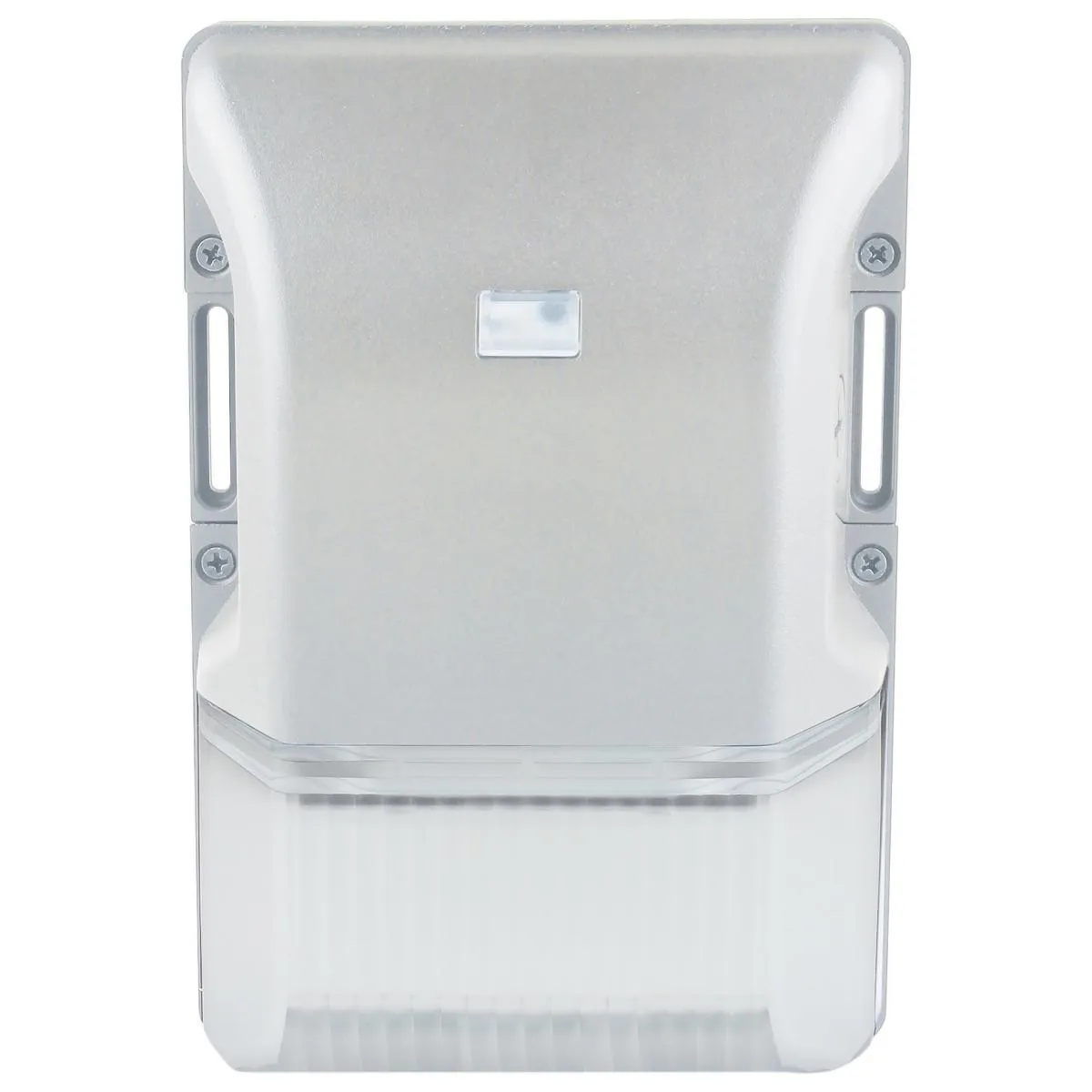

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; White Finish; 100-277V
The Nuvo 20W LED Small Wall Pack is now CCT Selectable. Available in three finishes and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in photocell sensor, a 100 degree beam spread, and is IP65 wet location rated making it the ideal addition to commercial buildings for exterior illumination.
- CCT Selectable
- 0-10V Dimmable
- Maintenance free - no bulb to change
- Die-cast aluminum body
- IP65, Wet rated for outdoor use
- UV Stabilized Powder Coated Finish
General
| Status | Active |
| Fixture Type | Wall Pack |
| Finish | White |
| Wattage | 20W |
| Lumen Output | 2608.9L/2920.8L/2703.4L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Outdoor |
Specifications
| Technology | LED |
| Wattage | 20W |
| Lumen Output | 2608.9L/2920.8L/2703.4L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 100 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to 45C ( 113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Photocell or Sensor | Has Photocell |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | 2.5KV |
| Weight (lb.) | 1.98 |
| IP Rating | IP65 |
| Material | Cast Aluminum |
Dimensions
| Height (in.) | 8.59 |
| Width (in.) | 5.81 |
| Extension (in.) | 3.09 |
Compliance
| Safety Listing | cULus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-GL6EYJ |
| ADA Compliant | Yes |
| B.U.G. Rating | B1-U3-G2 |
| NSF Approved | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Compliant - Outdoor LED |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Compliant |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Warranty |
Packaging
| Each UPC | 045923657498 |
| Each Quantity | 1 |
| Each Length (in.) | 6.10 |
| Each Width (in.) | 3.50 |
| Each Height (in.) | 8.90 |
| Each Weight (lb.) | 2.03 |
